PhorseCode POV gadget
POV, again, is nothing new or revolutionary in display technology. This one is interesting because of a few things; it is very small - you can build it with SMD parts on a very very small PCB and power it with a 3V button cell battery; and it is programmable on the site with a single button input method.

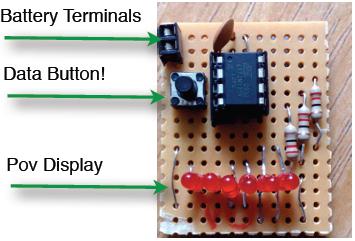

It is built on Atmel ATTINY25 and it uses 3 data lines to control 6 LEDs. Now, this single button uses a strange code similar to Morse-code and it is named PhorseCode.
"PhorseCode is an "Morse-code" system which uses a single button to enter data, but organises the dot-dash patterns for a a mobile phone keypad layout to make it easy to learn. Each letter is a 3-bit code."
© Julian Skidmore
Credits go to Hack-a-Day.
PhorseCode POV displej
Link
