/Schematics/Power supply/Triac regulation
Quote: "
This device uses PIC16C54 to control a triac. One push-button has the UP (increase) function, second one has the DOWN function and the third one is for ON-OFF. Button ON will increase the number on LED display from 00 to 99 which represents triac firing in percentages. Triac can power universal load such as light bulbs, motors and similar.
BTA40-700 triac is used in this application and it requires cooler. There is also a soft-start/stop function when firing a triac.
The PCB is 5cm*7cm single sided with SMD parts."
Author (sent by): Drago_Zg
Download counter: 7,103
Rating:
(2.91, votes 2497)
Vote:
Date: 16-09-2009
Lokalna verzija ove stranice: Regulator triaca
Tags: mikrokontroler, pic, regulator, triac. +add your tag
687_triac_regulator.rar
similar content
- Power supply with regulation and short-circuit protection (07-09-2004) [@Schematics/Power supply]
- Stabilized power supply with voltage regulation (28-05-2005) [@Schematics/Power supply]
- Simple power supply without regulation (17-03-2007) [@Schematics/Power supply]
- Triac regulation using PIC microcontroller (16-09-2009) [@News]
comment [7]
- From mior on 10-10-2013 at 04:29:34
hye sir
im intrested to do this as my mini project, and im going to change the triac to scr..
can you contact me through my email because i want to ask u something about the coding you
used..
thank you soo much..
IP: 210.187.58.166
comment [5]
- From dado on 17-10-2012 at 11:13:20
imam za diplomski rad da napravim "regulaciju broja okretaja AC motora 1,25kW pomoću
tiristora u antiparalelnom spoju" pa me zanima da li mi može netko pomoći ako ima el
shemu. i da li bi se ovakav regulator mogao koristiti i u mojem slučaju, samo da se umjesto
trijaka koristi tiristor.
IP: 195.29.46.220
comment [4]
- From tpetar on 22-08-2011 at 03:20:27

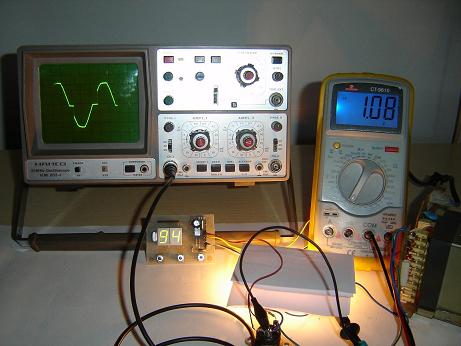

Zanimljivo, samo ima jednu manu, a to je nije zero crossing, prva slika lepo prikazuje na
osciloskopu da nedostaje taj početni deo sinusoide, tj. ne propušta svu struju. Ovo se može
rešiti upotrebom MOC3041 (zero crossing) umesto MOC3021. Uvek treba praktikovati MOC3041 ili
sličan zero crossing.
IP: n/a
comment [3]
- From trafo on 11-04-2011 at 14:20:14
zanima me mozeli se ovaj regulator upotrijebit za primar trafoa kod CO2 aparata
IP: 109.175.99.103
comment [2]
- From kabec on 18-04-2010 at 14:51:59
U asemblerskom kodu na forumu su opisane funkcije otpornika.
IP: n/a
comment [1]
- From kabec on 17-04-2010 at 20:02:45
Planiram da napravim ovaj regulator pa me zanimaju samo varijante sa funkcijskim otpornicima
posto nisu detaljno opisane.
IP: n/a
